Vacuum packing machines are an essential piece of technology in the modern world of packaging, particularly for industries that deal with perishable goods like food, pharmaceuticals, and electronics. The technology behind these machines may seem complex at first glance, but understanding how they work and the advancements made in their design can give businesses a significant advantage. This article will explain the technology behind vacuum packing machines in a way that’s easy to understand and explore how it benefits various industries.
A vacuum packing machine is a device used to remove air from a package and then seal it tightly, creating a vacuum-sealed environment. The purpose of vacuum packing is to extend the shelf life of products by eliminating oxygen that can contribute to spoilage and degradation. Vacuum packing machines are commonly used for packaging food, medical products, clothing, and electronics.
While the concept of vacuum packing is relatively straightforward, the technology behind the machines that perform this task has become more sophisticated over time. Various factors such as vacuum strength, sealing methods, and automation features have made modern vacuum packing machines more efficient, reliable, and versatile.
At the heart of any vacuum packing machine is the vacuum pump. The purpose of the vacuum pump is to remove air from the packaging material, creating the vacuum necessary for preserving the product. There are two types of vacuum pumps commonly used in these machines:
The rotary vane vacuum pump is the most commonly used pump in vacuum packing machines. It operates through a rotating mechanism that traps air within chambers and forces it out through an exhaust valve. This pump is highly efficient and is capable of producing a high level of vacuum pressure, which is essential for creating an airtight seal. Rotary vane pumps are reliable, durable, and can handle both light and heavy-duty vacuuming tasks.
Some higher-end vacuum packing machines use oil-lubricated vacuum pumps. These pumps offer even better performance and are particularly effective in high-volume packaging applications. The oil used in the pump helps to keep the pump's internal components cool and lubricated, preventing wear and tear and ensuring smooth operation over extended periods. Oil-lubricated pumps also offer the ability to produce a deeper vacuum, which is beneficial for packaging products that require an ultra-low oxygen environment.
The vacuum packing process involves several critical steps, all of which are automated in most modern vacuum packing machines. Below is an overview of how the process works:
The first step in the vacuum packing process is to place the product inside a specially designed vacuum bag or pouch. These bags are made from durable, flexible materials that can withstand the vacuuming process and create an airtight seal. The size of the bag is chosen based on the size of the product being packed, ensuring that there is enough space to create the necessary vacuum.
Once the product is inside the bag, the vacuum packing machine begins the vacuuming process. The machine’s vacuum pump removes the air from inside the bag, creating a low-pressure environment. This process is crucial because it removes oxygen, which can lead to the growth of bacteria, mold, and yeast that cause spoilage.
The vacuum pressure needs to be just right. Too little vacuum pressure will leave air inside the bag, while too much vacuum pressure could damage delicate products. Modern vacuum packing machines are equipped with sensors that detect the level of vacuum pressure and adjust accordingly, ensuring that the bag is perfectly sealed without compromising the quality of the product inside.
Once the air has been removed from the bag, the next step is to create a seal. This is done using a heat sealing element, which melts the edges of the bag together. The heat sealer ensures that the bag remains tightly closed, keeping air from entering the bag and preserving the product.
The sealing process must be precise. If the heat is too high, it could burn the bag; if it’s too low, the seal won’t hold. Modern vacuum packing machines are equipped with temperature control systems that regulate the heat during sealing, ensuring a perfect seal every time.
After the bag is sealed, the cooling process begins. Cooling the sealed area ensures that the heat-sealed edges are strong and durable. Cooling can be done through ambient air or by using built-in cooling systems. Once the bag has cooled, it is fully sealed and ready for storage, transportation, or sale.
There are several different types of vacuum packing machines available, each designed for specific needs and industries. Understanding the different types of machines will help you choose the right one for your packaging requirements.

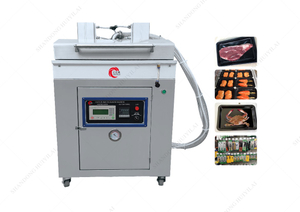

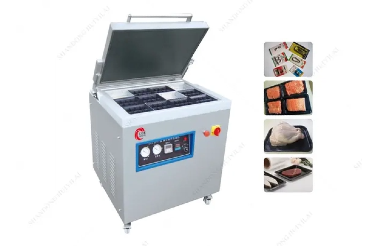

Chamber vacuum sealers are often used in food packaging operations and are perfect for packing multiple products at once. The product is placed inside a vacuum chamber, and the chamber is sealed. The machine then evacuates the air from the entire chamber, including the packaging bag, ensuring that no air remains. This type of machine can handle bulk packaging and is ideal for commercial or industrial settings.
External vacuum sealers are typically used for smaller packaging jobs. These machines are designed for sealing one bag at a time and are popular in households and small businesses. The product is placed inside a vacuum bag, and the machine’s vacuum pump removes air from the bag through a nozzle. The bag is then heat-sealed to preserve the product.
Continuous vacuum sealers are designed for high-volume production environments. These machines operate continuously, meaning that products can be fed through the machine in a steady stream. The machine performs the vacuuming and sealing process without interruption, making it ideal for packaging large quantities of products.
Today’s vacuum packing machines are not just about basic vacuuming and sealing—they come with a wide range of advanced features that improve performance, ease of use, and product preservation.
Modern vacuum packing machines often feature digital controls and touchscreen interfaces that make it easy to set parameters like vacuum strength, sealing time, and bag size. These controls allow users to fine-tune the machine for different products, ensuring that each package is sealed perfectly. This added level of precision improves the overall packaging process and minimizes human error.
Some vacuum packing machines use a multi-stage vacuuming process, which involves several stages of air removal. This ensures that the vacuum pressure is consistently strong and that delicate products are not damaged during the process. The multi-stage vacuuming process is especially useful for packaging products that require a more precise level of preservation, such as fresh food or medical equipment.
Certain high-end vacuum packing machines feature automatic bag positioning systems that ensure the bag is placed in the right position for sealing. This reduces the likelihood of errors and ensures a consistent result with each package.
Understanding the technology behind vacuum packing machines allows businesses to make informed decisions about their packaging processes. From the vacuum pump and sealing techniques to the automation features and advanced controls, vacuum packing machines offer significant benefits over traditional packaging methods. They increase efficiency, reduce material costs, extend shelf life, and help businesses stay competitive in a rapidly evolving market.
For businesses looking to invest in high-quality vacuum packing machines, Shandong Huiyilai International Trade Co., Ltd. provides reliable and efficient solutions designed to meet a wide range of packaging needs. Their machines incorporate cutting-edge technology and are built for durability and performance, ensuring that your business can optimize its packaging process while maintaining product quality and reducing waste.
