Industrial Ozone Vegetables Washing Machine Commercial Vortex Vegetable Washers

It is suitable for the processing of root vegetables such as pickling, rough washing, cutting, fine washing,sterilization,pesticide degradation, leach ate and packaging.
Size:
Material:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HYL OEM

  • HUIYILAI

Industrial Ozone Vegetables Washing Machine Commercial Vortex Vegetable Washers

微信图片_20240429163717


Specifications

Product Name
Vortex vegetable washers
Other Names
Continuous industrial vegetable washing machine
Model
HYL-40
Size
4200*1150*1600mm
Appearance
Sand blasting
Color
Silver
Material
SUS304 stainless steel
Productivity
500-800kg/h
Voltage
380V50HZ, or customized
Power
4.8KW
MOQ
1 Pcs

Products Description

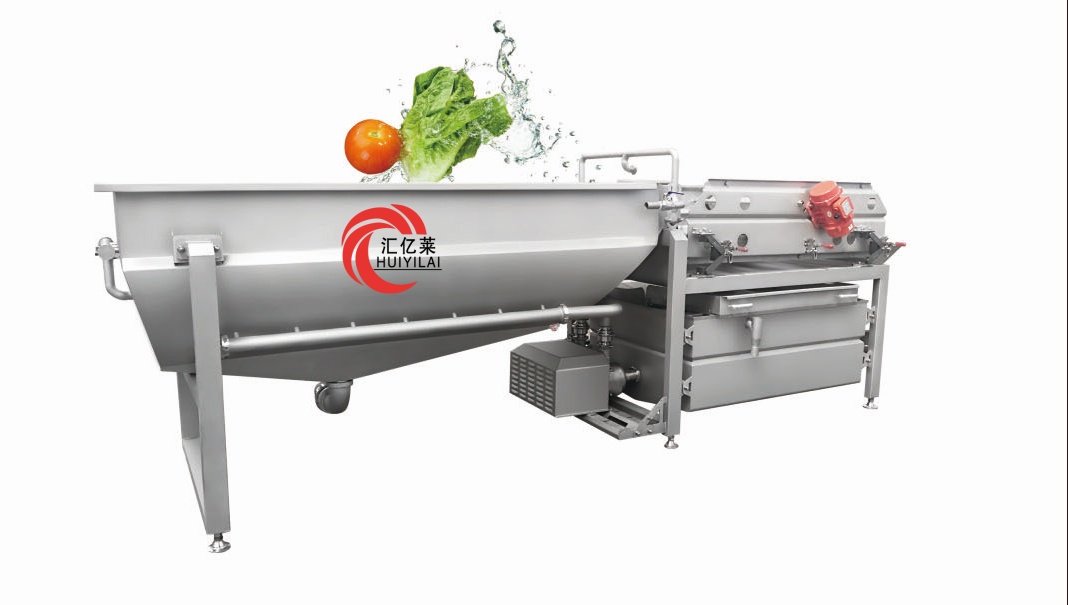

Vortex vegetable washer machine is a fruit and vegetable cleaning and washing machine. This machine has a simple and compact structure,it is convenient for operation, easy cleaning, good water filtration performance and high production capacity.
Features and advantages: 1. Works with a vibration screen as the conveying device, can drain water while conveying materials, remove large water droplets, and achieve partial dehydration effect. 2. Add a drum type impurity removal system and a dirt removal guide slot to remove dirt and debris, for better cleaning and maintenance of the equipment. 3. The vibrating conveyor has added a spray device on its top: a fresh water spray device system connected to tap water has been added at the end of the entire cleaning system, improving the cleaning effect of the entire system. Working principle: Works with clean water to form a vortex, so that the material is washed in the vortex of clean water. When the material is cleaned, it moves in a spiral motion together with the clean water in the  tank. After cleaning, the material is pushed into the vibrating conveying device by hydrodynamic force and then discharged. Main structure: This machine is composed of frame, water tank, water pump, water storage tank, vibration conveying device, and electrical control system,etc. Purpose: Suitable for washing leafy vegetables, sliced root vegetables, and pickled fruits and vegetables, such as cabbage, lettuce, spinach, turnip, etc.
Applications

Vegetable fruit washing machine Can Be Used For:

Vegetables:
Spinach, ginger, potatoes, wild herbs, kelp, okra, pepper, chili, and others.
Fruits:
Dates, mango, strawberry, apple, pear, tomato, grape, etc.
Others:
Fish, shrimp, meat, barley, herbs, larvae, scallop meat, etc.
1715061351373

Details Images

1.Easy control system:

The electric control cabinet integrates all the electronics circuit and control buttons,easy for controlling.

2.Fine filter system on the top of water tank:
The filter system can block most of impurities and leaves come into the water tank,then keep the recycled water clean.
3.Double water pumps:
Double water pumps make the water vortex more strong and greater impact force,can wash the vegetables more effectively.

4.Drum type impurity removal device:
The drum type impurity removal device provides better results in removing dirt, impurities, and debris from broken leaves.

5.Vibration conveying system:

Can transport the vegetables with vibration so as to remove part of water, has the function of dehydrat.

1714380845151

电子彩页赫德(1)-3

Food solutions support Professional Machines to All over of World!


1714890478451

1714792736908
