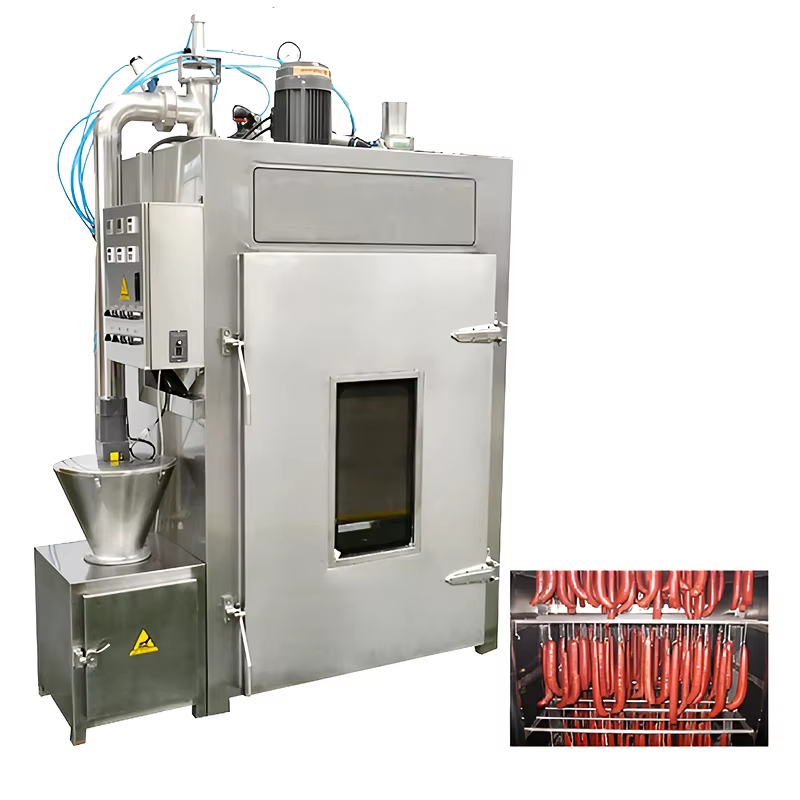

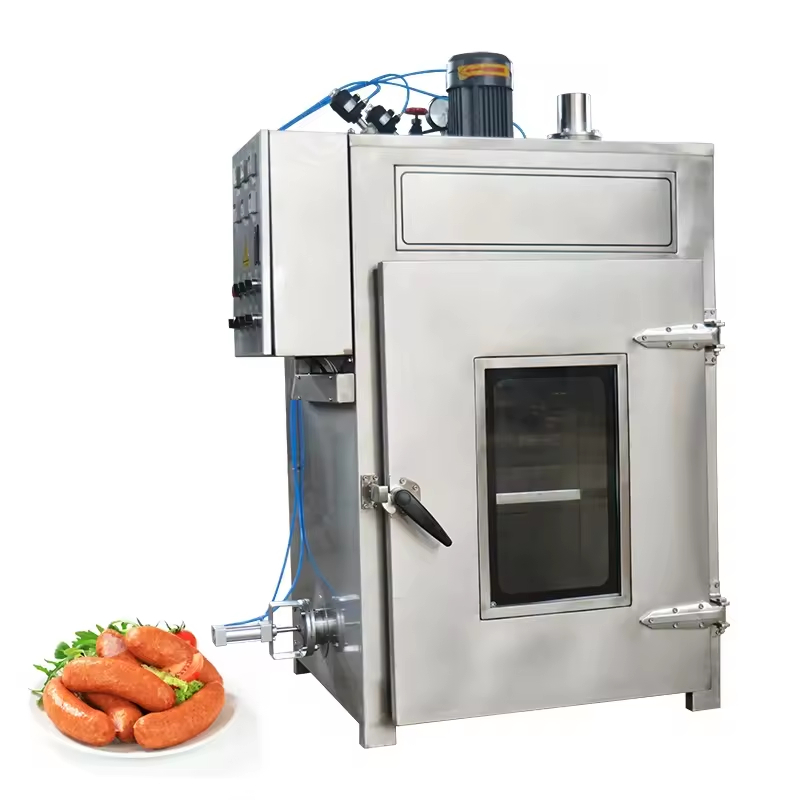

Brief introduction of structure:This drying smoking machine is mainly composed of furnace body, heating system, circulating air system, and electric control system.

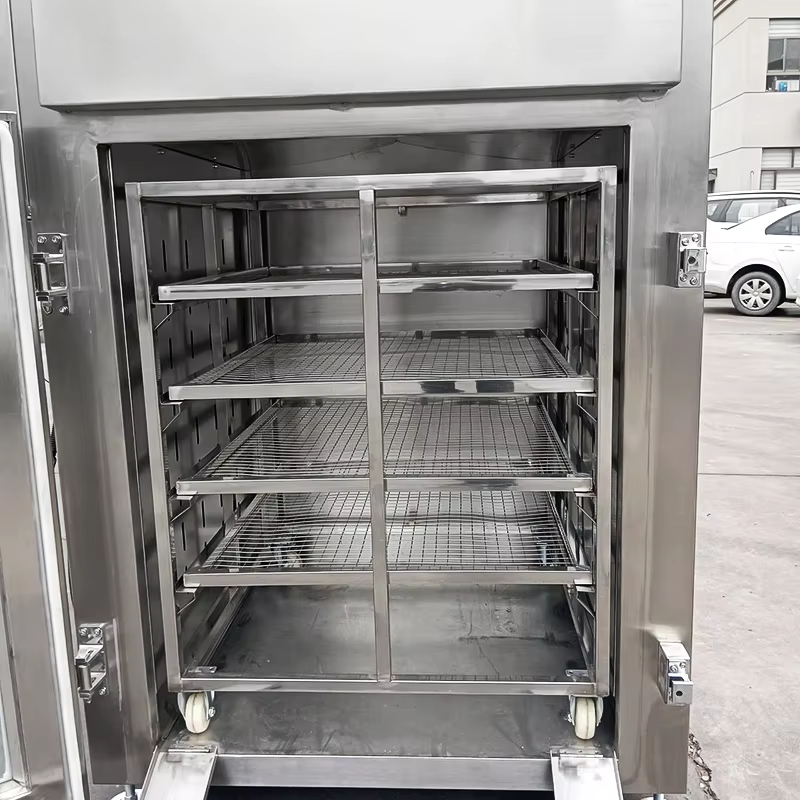

1. Furnace body: All internal components and outer walls of the furnace body are made of stainless steel, corrosion resistant. The meat products are hung on the trailer, sent into the furnace body, the furnace door is closed, and the cooking can be carried out according to the set process parameters.
2. Cooking part: The internal design of the furnace body automatically generates steam system, directly heating the products in the furnace. The output of steam can be adjusted according to different products. The pressure inside the container cannot exceed 0.08Mpa.
3. Circulating air system: the top of the furnace body is equipped with two-speed electric fan, high power and large air volume to ensure the temperature in the furnace, so that the temperature is uniform everywhere, to ensure the quality of products stable and reliable.
4. Smoke system: the furnace body memory is placed on the smoke tray of wood chips, and the wood chips or fructose is stored on the smoke tray. Press the smoke button on the control panel and adjust the time, and the smoke will smoke cooked products in the furnace body evenly. Adjust the time with manual ignition and point feeding buttons.
5. Electrical control system: The electronic control part of the automatic steaming and fumigation box adopts advanced human-machine interface and programmable controller to fully control and monitor each process.
Equipment advantages:
1. do not adjust, do not turn the product up and down during the processing, but can ensure that all the surface of the product is evenly colored.
2. high production capacity, save labor, push the product into the box inside, the machine can automatically complete all the process, one time out.
3. the main machine is made of stainless steel, clean and sanitary, avoiding the smoky environment of traditional processing methods.

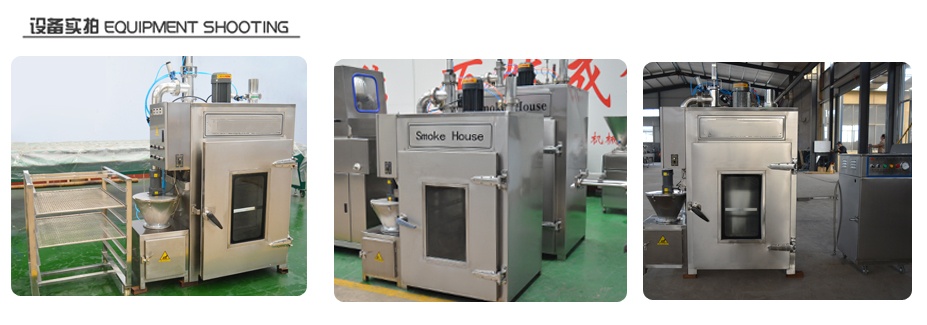

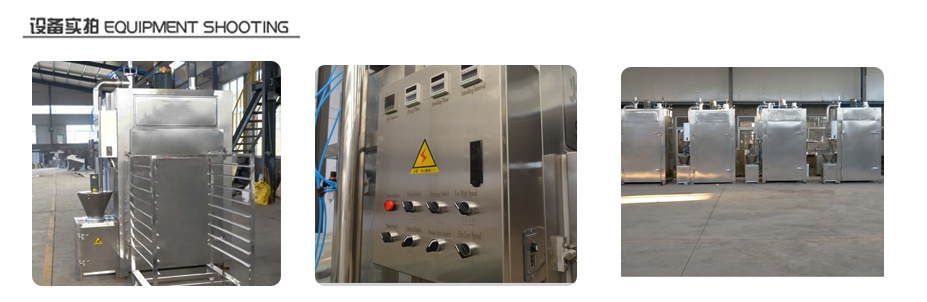

Detail presentation
▼
Applicable product
▼
Company introduction
▼
Shandong Huiyilai is a collection of production, processing, sales, trade as one of the enterprises. The company is located in Zhucheng City, Shandong Province, our company specializes in the R & D, manufacturing and service of food machinery and equipment for more than 20 years, the team serves more than 300 small, medium and large enterprises around the world. In our team, the managers and engineers have more than 15 years of field experience in the field of mechanical equipment manufacturing and application, and have strong non-standard equipment design, manufacturing and construction capabilities to effectively serve customers. Our team can not only customize special production equipment for you, but also provide you with all-round assistance from plant planning, production line design, equipment selection, installation and commissioning to product quality management, fully realizing "turnkey project" delivery.
Foreign exhibition
▼
Certificate
▼
Packing and shipping
▼
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. The customer's logo or company name can be printed on products by stamping, printing, embossing, coating, or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should be at least MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is a priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What are your warranty terms?
A: We offer different warranty times for other products. Please get in touch with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered?
A: Yes, we will. The core of our company culture is honesty and credit.
