Large-Scale Food Freeze Dryer for Sale

Name: Large-Scale Food Freeze Dryer for Sale
Brand: HUIYILAI
SKU: 582583657
Rating: 5.0 (77 reviews)

Vacuum freeze drying is a drying method which heats the frozen water content product, under a condition of vacuum and low temperature, sublimates the moisture in product from solid state to gas state. Under the function of cold trap, freezes the moisture in gas state into ice, so as to get rid of the moisture in product and preserves the product.
Compare with the freeze dryers from other suppliers, the most important advantages of Walley Vacuum Freeze Dryer are:
1, Walley freeze dryer has the independent fast freezers to shorten the producing time about 1/3;
2, Some large models of Walley freeze dryer equip with double cold trap systems which can save the defrosting time and have not to waste time for waiting the maintance once somewhere is fault.

Quantity:
Material:	food grade SS304 and other good quality materials
Size:	HYLXFD-200--1200
voltage:	440V/60Hz/3P or 380V/50Hz/3P
Availability:





Inquiry Add to Basket

Model:
HYL OEM
Brand:
HUIYILAI

Product Description

Product Description

Why choose a vacuum freeze dryer?

A vacuum freeze dryer preserves food’s natural color, aroma, and flavor by retaining pigments and minimizing the loss of aromatic compounds. This method also excels in preserving proteins compared to traditional cryopreservation. Freeze drying ensures that food maintains its original texture and appearance, making it ideal for high-quality preservation of fruits, vegetables, and protein-rich foods. The process removes moisture while maintaining the integrity of the nutrients, providing a longer shelf life without compromising quality.

Food freeze - drying process illustration

Technical Parameter:

Model	HYLXFD-200	HYLXFD-300	HYLXFD-500	HYLXFD-600	HYLXFD-900	HYLXFD-1200
Feed rate of extraction solution containing 45% dry matter (kg/h)	474	711	1185	1423	1897	12845
Capacity(kg)	220	330	544	660	872	1320
24 hours output (kg/day)	5280	7920	13066	15840	20928	31680
Feed rate of extraction solution containing 25% dry matter (kg/h)	313	469	780	937	1249	1874
Capacity(kg)	81	121	201	241	322	482
24 hours output (kg/day)	1933	2900	4826	5800	7728	11600
Feed rate of extraction solution containing 15% dry matter (kg/h)	170	256	427	512	684	1022
Capacity(kg)	26	40	65	79	105	158
24 hours output (kg/day)	632	948	1573	1896	2520	3792
Freezing temperature	-30℃~-60℃(Can design)
Condenser temperature	-50℃~-80℃(Can design)
Heating way	Silicone oil ,Electric heating
Vacuum degree	≥1Pa
Remark: Here also Can produce vacuum freeze-drying machines ranging from 5kg to 3000kg according to customer requirements

Equipment Characteristics:

Our continuous freeze-drying system is designed to boost efficiency and streamline production by cutting down on downtime and reducing the need for manual intervention. Perfect for high-volume food processing, especially when working with single raw materials, this system simplifies the freezing and sublimation processes while enhancing energy efficiency.

Key Benefits:

Seamless Operation: Unlike batch processing, our continuous system runs without interruption, eliminating idle time and optimizing steps like cooling, refrigeration, and vacuum cycles.
Energy Efficiency: This system significantly reduces energy use, cutting installed power by 21-30% and refrigeration needs by up to 40%, helping to reduce overall operational costs by 25%.
Smart Heating & Cooling: The freeze-dryer uses heat recovery refrigeration, which helps minimize boiler investment. Its system automatically adjusts refrigeration capacity based on production demands, ensuring energy savings.
Precise Drying Control: With multiple temperature control zones and an automated system, the machine precisely monitors and adjusts the drying process, ensuring consistent product quality.
Optimized Refrigeration: The system features a dual-stage refrigeration process for better performance and lower energy input. Additionally, it uses both built-in and external cold traps, with smart ice melting and cooling that adapts to production needs.

Comparison of food preservation methods

Machine Details :

Our freeze-drying machine combines advanced components for high efficiency and reliability:

Efficient Refrigeration System: Equipped with a dual-stage refrigeration unit that optimizes power use and adjusts automatically to maintain ideal temperatures for freeze-drying.
Advanced Cold Trap Design: Features both circular and square cold traps, ensuring effective moisture capture and preventing energy waste during the drying process.
User-Friendly Touchscreen Control: Provides seamless operation with real-time monitoring, enabling precise control over the freeze-drying process for consistent results.

Aluminum alloy radiant plates.

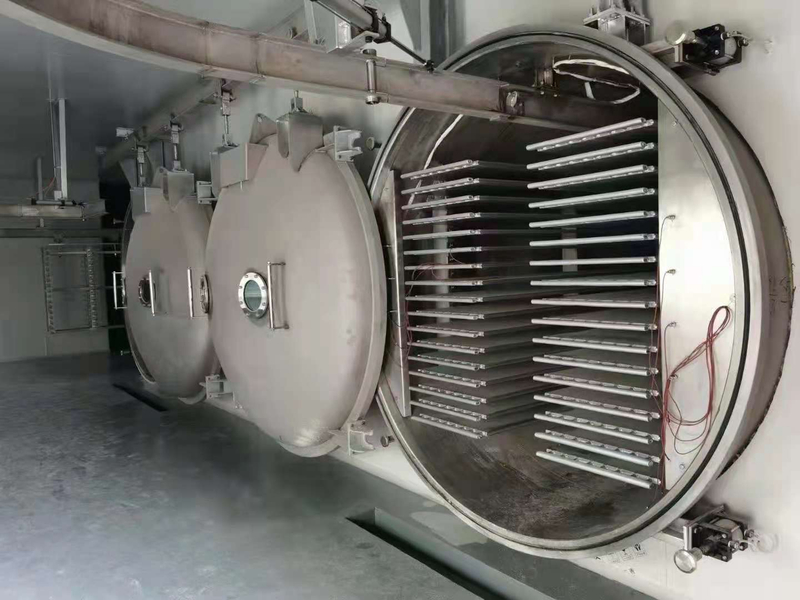

Freeze dryer warehouse scene.

Refrigerating unit equipment.

Touch - screen operation panel.

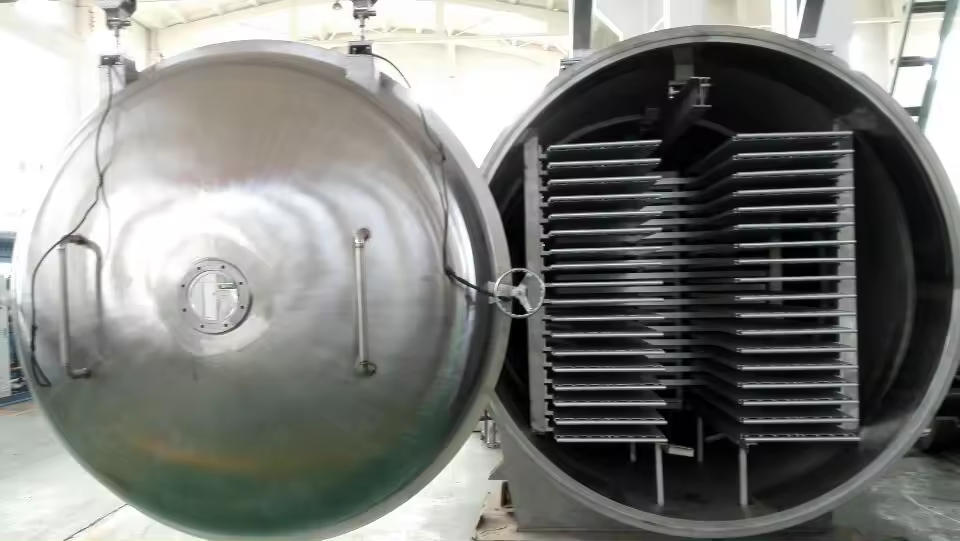

Large - scale dryer interior.

Customer site pot:

Here are real-world examples of how our freeze-drying equipment is used across different industries:

Preserving a Variety of Foods: Our machines efficiently preserve fruits, vegetables, meats, and proteins, retaining their original color, shape, and nutrients.
High-Capacity Operations: Designed for large-scale use, our freeze-drying systems handle high volumes, ensuring continuous production in expansive facilities.
Flexible Use Cases: Whether it's herbs, meats, or mixed ingredients, our equipment is tailored to meet the needs of diverse food processing, maintaining product quality and shelf life.
Optimized Process Control: From material preparation to precise control over temperature and moisture, our machines provide a seamless solution for consistent, high-quality results.

Freeze - dried food display

Variety of freeze - dried items

Different freeze - dried products

Assorted freeze - dried foods

Various freeze - dried ingredients

More freeze - dried samples

Different freeze - dried chunks

Welcome Your Inquiry!

Thank you for choosing HUIYILAI for your freeze-drying needs. Our diverse range of high-performance freeze dryers is designed to meet the unique requirements of various industries. Whether you're looking for compact, lab-scale units or high-capacity, large-scale systems, our equipment offers dependable, efficient, and cost-effective solutions.

From the 1m² lab freeze dryer to the 200m² industrial model, HUIYILAI is dedicated to providing tailored solutions that align with your production needs. Get in touch today, and our expert team will guide you with customized recommendations and full technical support to ensure the perfect fit for your business.

Various freeze dryers displayed
