| Designed Temperature: | |
|---|---|
| Designed Pressure: | |
| application field: | |
| core components: | |
| heating way: | |
| sterilizer way: | |
| Quantity: | |
HYL-900,HYL-1000,HYL-1200,HYL-1300
HUIYILAI
Product Description

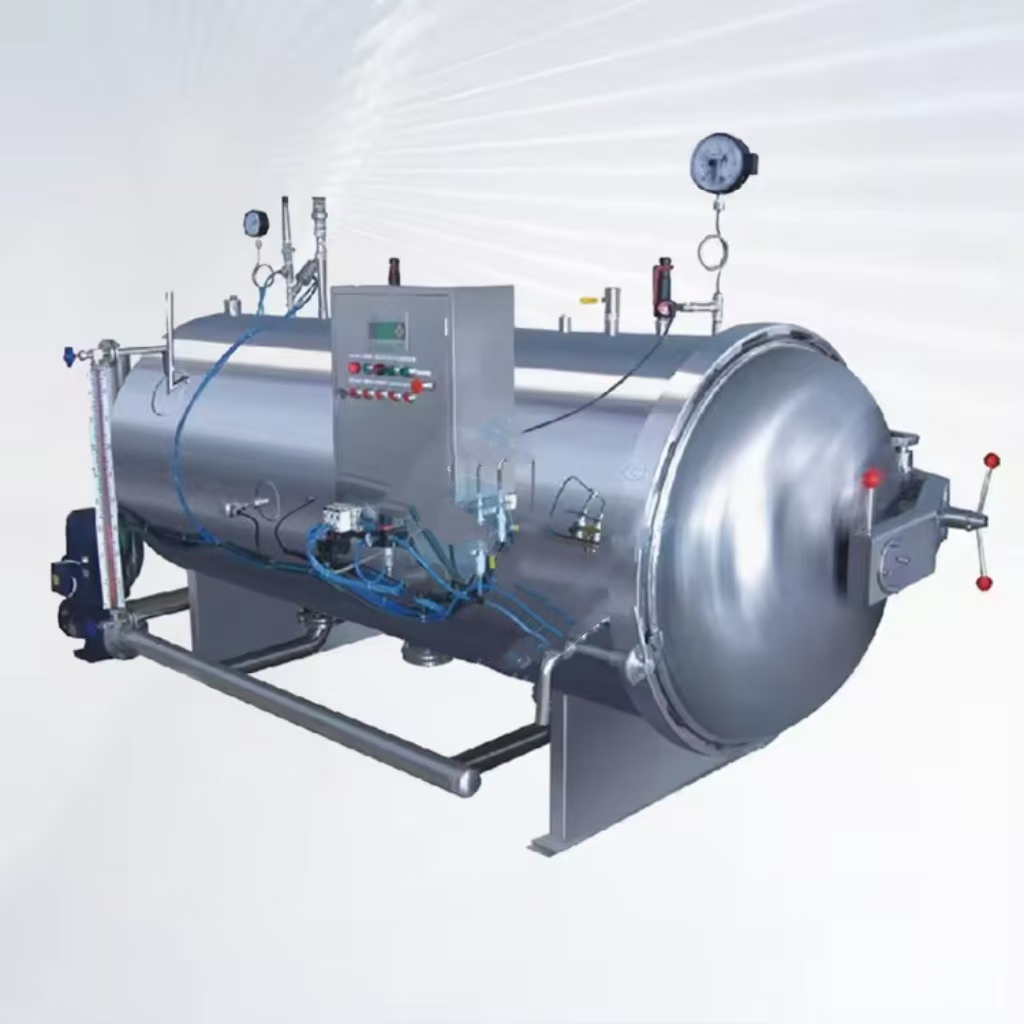

The High Temperature High Pressure Steam Vacuum Poultry Meat Sterilizer Retort Machine is designed to provide high-temperature, high-pressure sterilization for food and beverage products. This machine is suitable for sterilizing a variety of heat-resistant and water-proof packaged materials, such as pouches, cans, glass jars, and plastic containers.
Ideal for sterilizing food and beverage products under high temperatures and pressures.
Suitable for packaging materials that are heat-resistant and water-proof, including pouches, cans, glass jars, and plastic containers.
Indirect Heating and Cooling
Prevents secondary contamination by ensuring clean, controlled heating and cooling processes.
Gradual Heating and Cooling
Minimizes the risk of product damage from sudden temperature changes (heat shock), preserving product quality.
Uniform Heat Distribution
Ensures consistent sterilization, maintaining uniform quality across all products.
Programmable Control
Offers programmable settings for temperature, time, and pressure, ensuring precise control over the sterilization process.
Efficient Water Usage
Utilizes a minimal amount of soft water, reducing energy consumption while maintaining product quality and appearance.

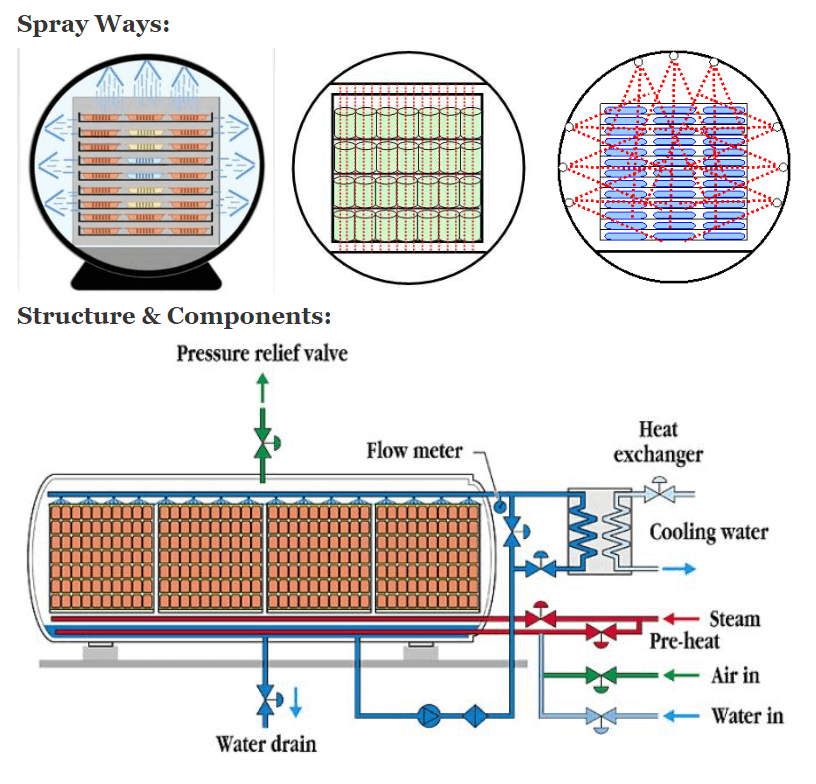

Work principle
Product Paramenters
Item name | Specification |
Inner diameter/length/capacity | 1200mm/3600mm/4.6cbm |
Thickness of shell | 5 mm |
Material | SS304 |
Heating way | Steam directly |
Cooling way | Fully water |
Features | Fast sterilization, shorten the come-up time, reduce heat treatment, protect food taste and color |
Max working temperature | Sterilization temperature max temperature 130 °C. |
Max working pressure | 0.3 Mpa |
Control | Full-automatic |
Baskets | 900*800*800mm |
Installation power | 380v,50hz, 16.5 kw |
Occupied Area | 5200X1950X3400mm |
Weight | 3000kg |
Packaging & Delievery
Fast Sterilization: The retort sterilizer shortens the time required to reach sterilization temperature, improving efficiency and throughput.
Preserved Product Quality: The gradual heating and cooling processes help maintain the taste, color, and texture of food products.
Energy Efficiency: The system uses a minimal amount of water and energy, reducing operating costs while maintaining high sterilization standards.
High-Quality Consistency: Ensures consistent results, providing uniform sterilization for each batch of food or beverage products.
Food Industry: Perfect for sterilizing a wide range of food products such as poultry, meats, ready-to-eat meals, and canned foods.
Beverage Industry: Suitable for sterilizing beverage containers, including cans and glass bottles.
Packaging Materials: Compatible with various heat-resistant and waterproof packaging materials, offering versatility for different product types.
For more information about the High Temperature High Pressure Steam Vacuum Poultry Meat Sterilizer Retort Machine or to discuss your specific sterilization needs, please feel free to contact us. We offer expert consultation and full support services, ensuring you receive the best equipment for your food and beverage sterilization processes.
