| application field: | |
|---|---|
| Material: | |
| design temperature: | |
| fuction: | |
| after sales service: | |
| sterilizing way: | |
| Quantity: | |
HYL OEM
HUIYILAI

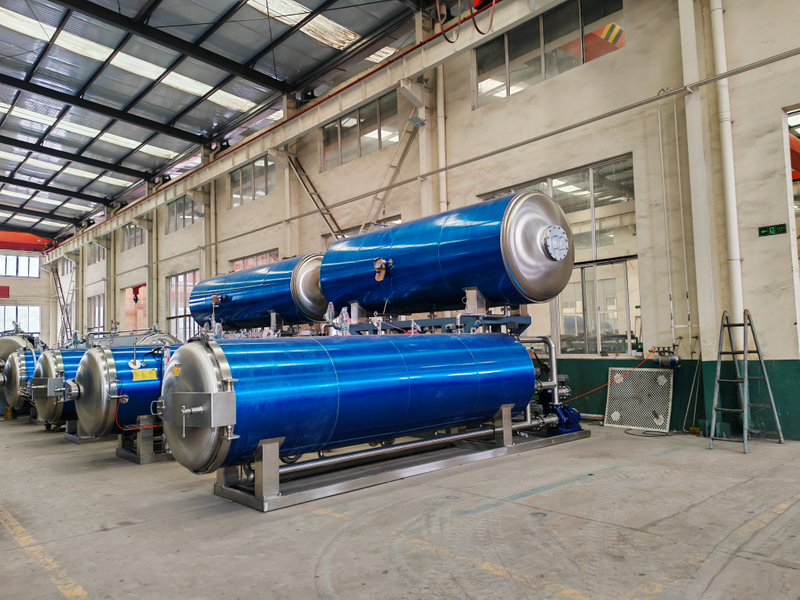

The Automatic Plastic Package Milk Steam Retort Autoclave ensures safe long-term storage of milk, juice, and liquid food products in plastic bottles and pouches. Using precise steam heating (121-135°C) and pressure control (1-2 bar), it achieves commercial sterility while preserving nutritional value (Vitamin C retention ≥90%). The 1500mm diameter chamber processes up to 4000 units (500ml bottles) per cycle, ideal for dairy and beverage manufacturers.
Steam-Jacketed Sterilization: Uniform heat distribution (±0.5°C) via overhead steam nozzles and perforated floor, eliminating cold spots in rectangular pouches and curved bottles.
Pressure-Controlled Cooling: Gradual cooling (1-2°C/min) with filtered air pressure (1.5bar) prevents package deformation, compatible with PE, PP, and multilayer co-extruded films.
Multi-Package Compatibility: Adjustable trolley grids accommodate bottles (50-500ml), stand-up pouches (100-1000ml), and gable-top cartons (up to 200mm height).
Data Integrity System: PLC records sterilization parameters (time, temperature, pressure) for 5 years, with automatic PDF reports compliant with FDA 21 CFR Part 11.
Dairy Products: Sterilizes UHT milk, flavored yogurts, and creamers in plastic bottles, extending shelf life to 6-12 months at ambient temperature.
Beverage Industry: Processes juices, sports drinks, and liquid supplements in PET bottles, meeting NFC (Not From Concentrate) quality standards.
Convenience Foods: Sterilizes liquid soups, broths, and marinades in retortable pouches, compatible with downstream labeling and cartoning systems.
Pet Food: Sterilizes wet pet food (pate, stews) in flexible packaging, ensuring bacterial safety (including Salmonella spp.) per AAFCO guidelines.
Q: Can it sterilize opaque plastic containers?
A: Yes, temperature sensors embedded in the trolley track monitor core temperature of opaque packages, with additional thermal validation via F0 value calculations.
Q: What is the minimum package wall thickness?
A: Suitable for containers with wall thickness ≥0.3mm; thinner films require pre-testing for pressure resistance.
Q: How long is the sterilization cycle for 500ml bottles?
A: Standard cycle: 15 minutes heating, 30 minutes at 121°C, 20 minutes cooling—total 65 minutes per load.
